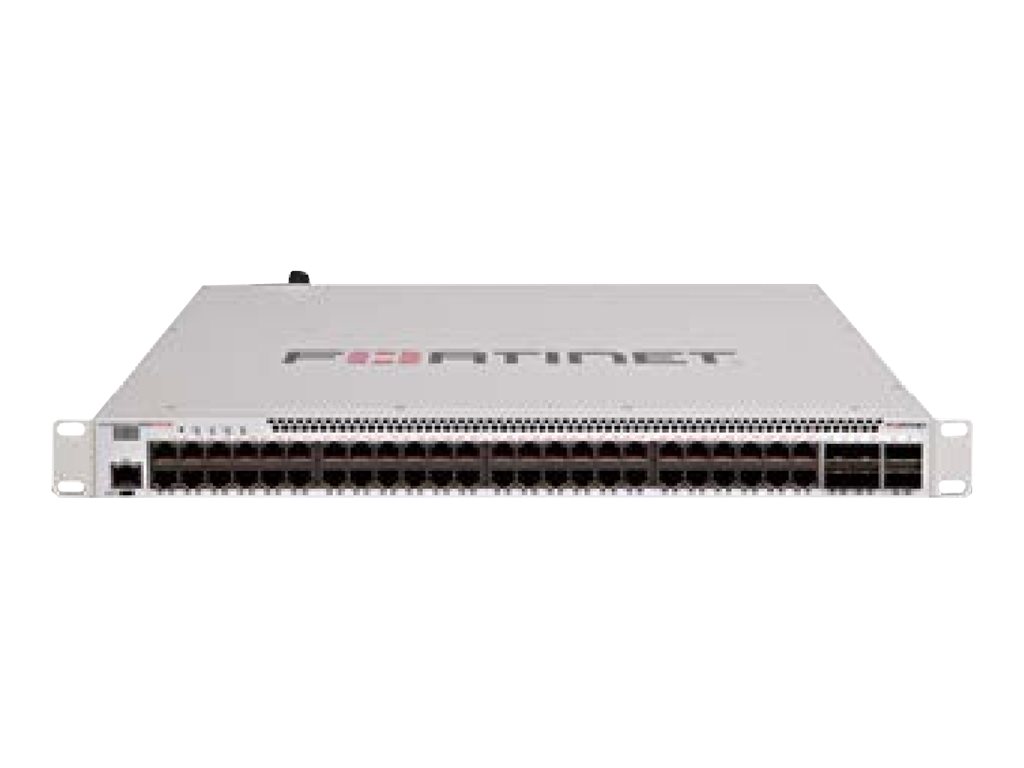

Fortinet FortiSwitch 548D
MSRP$5,618.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Fortinet FortiSwitch 548D
- Switch
- managed
- 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
- rack-mountable
- PoE+ (750 W)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $5,618.00 |
| Mfr Part #: | FS-548D-FPOE |
| SHI Part #: | 30546711 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Fortinet |
| Product Type: | Hardware |
Networking and Security
- GigE
- 1000Base-T
- RJ-45
- up to 100 m
- for FortiGate 11XX, 18XX, 22XX, 33XX, 34XX, 36XX, 40, 42XX, 60, 61; FortiSwitch 424, 448, M426
MSRP $150.00
$136.00
- SFP+ transceiver module
- 10GbE
- 10GBase-ER
- LC single-mode
- up to 40 km
- 1550 nm
MSRP $1,635.84
$1,475.00
| General Information | |
|---|---|
| Category | Network switches |
| Description | Fortinet FortiSwitch 548D - Switch - managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ - rack-mountable - PoE+ (750 W) |
| Manufacturer | Fortinet |
| MSRP | $5,618.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 31 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 7.14 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Fortinet |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 48 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 31 cm |
| Height | 4.4 cm |
| Weight | 7.14 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Capacity |
|
| Compliant Standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.1x, IEEE 802.3at |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Features | PoE, IGMP snooping, PoE+, Syslog support, traffic shaping, port mirroring, DiffServ support, Broadcast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, Jumbo Frames support, LACP, DHCP client, MIB, tagged VLAN, GVRP |
| Jumbo Frame Support | Yes |
| MAC Address Table Size | 96K entries |
| Performance |
|
| PoE Budget | 750 W |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH-2, CLI |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, static IP routing |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Power | |
| Power Consumption Operational | 961 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
